Tutorial: Modified GE Cassette Player Pitch mod

Recently, a circuit-bender I look up to (Rich Burnett, aka The Sound of Machines) posted a really cool pedal-housed version of his Cassettone player mod made by another circuit bender on his Instagram feed. It looked pretty cool, so, of course, I went searching for it.

Within a few clicks, I found it and discovered that this maker was also selling Rich’s GE cassette player mod design (with less features) for a whopping $275 on Reverb.com. This is ridiculously overpriced, considering when I built three of them, for myself and two friends during the pandemic, it was pretty much an open source mod and freely available via Rich’s website (and still currently available via his YouTube channel.) Feel free to buy from dude if you want, but maybe save yourself $200+ and build one yourself.

Unfortunately, Rich has since let his domain expire and his website has vanished, which is how I found out about this mod. Luckily, the YouTube video and Google Drive links remain. With Rich’s permission, I have republished his original article, wiring schematic, drilling template and (updated) links to all the parts to make it easier to find via Google search and give it a little more visibility for folks getting into circuit bending, tape loops and cassette manipulation. This is an easy tutorial, and it also pretty much peeled back the curtain for me on how to get started modding tape players.

Why pay $275 when you can build this same modded cassette player for roughly $30-40USD or so?

A video tutorial by Rich, himself.

Control playback speed, add an overdrive effect, and mute the audio output with these simple mods to an old-school GE cassette player. This project assumes you already have a basic understanding of soldering techniques.

Other Basic Materials

Materials you need, but may already own.

  • Ssoldering station & solder
  • drill with various-sized bits or Dremel tool with tapered grinding stone
  • Liquid Nails, Gorilla Glue or other glue for plastic
  • wire strippers
  • 2 short screws w/ washers & nuts
  • small screwdriver

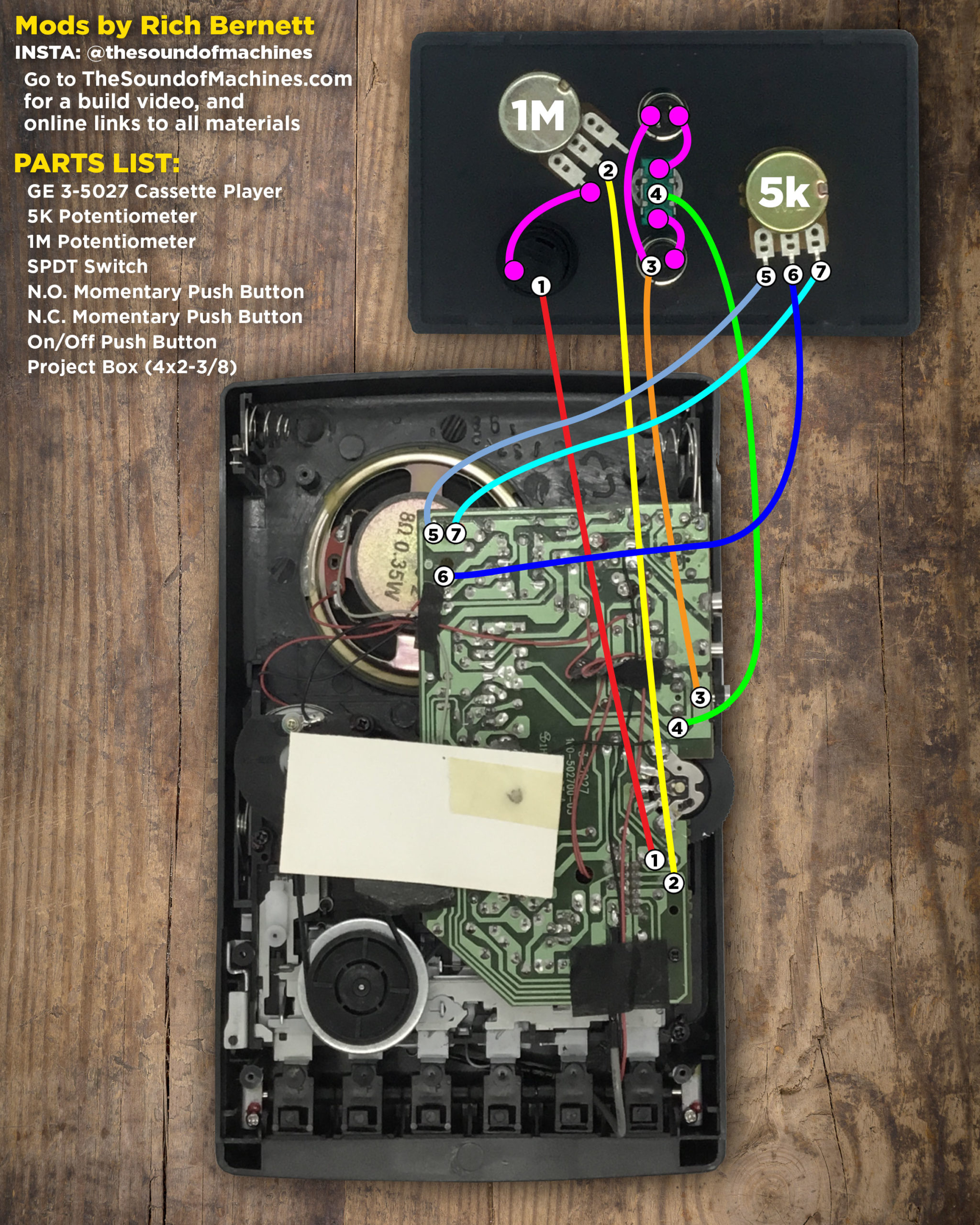

Wiring Schematic

Click to view larger, right-click to save.

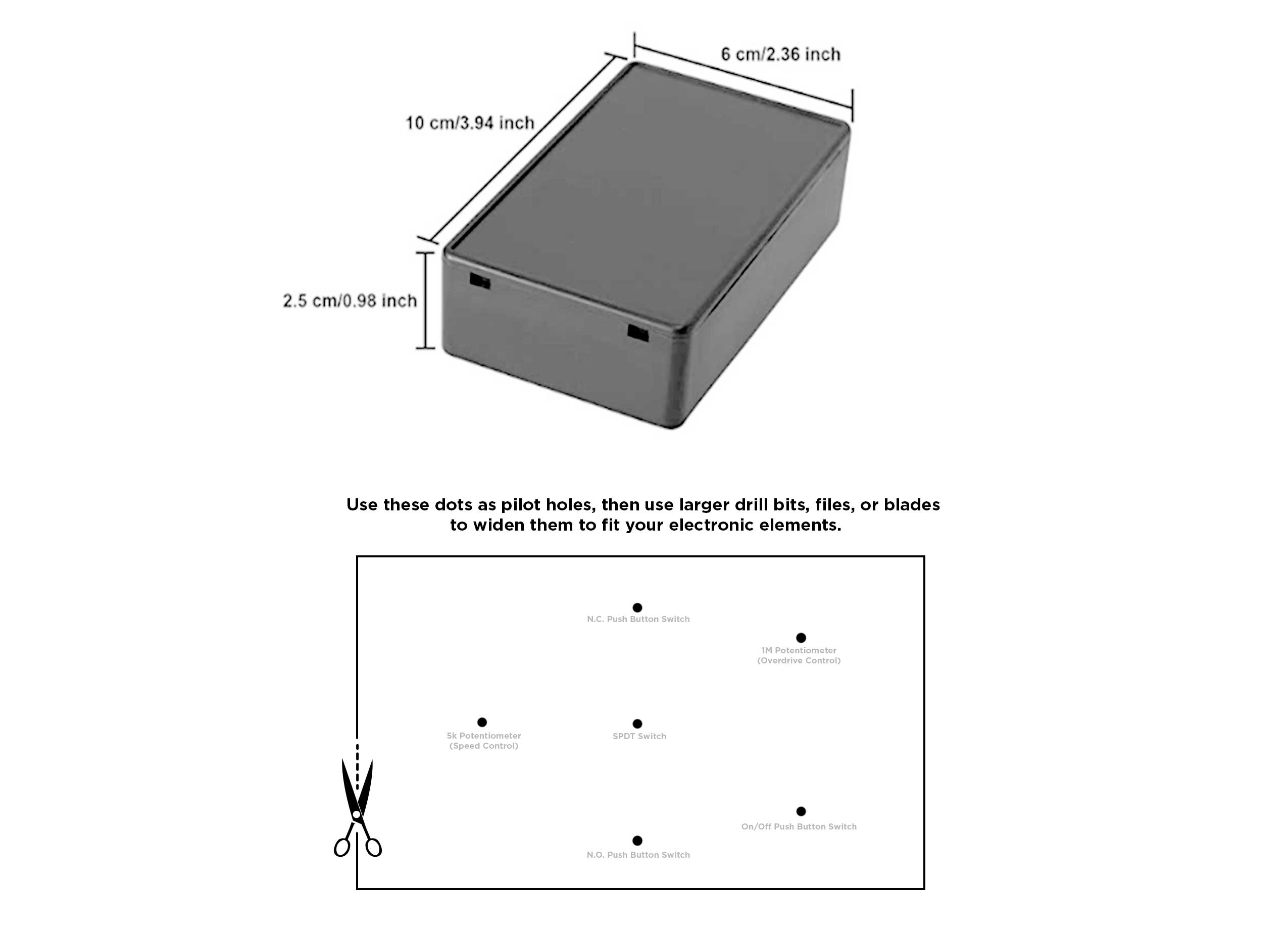

Button Layout Template

Download, print, and cut-out this template to use as a guide for where to drill your holes for your components.

Republished with permission from Rich Bernett, aka The Sound of Machines.

Posted by Martin Defatte
